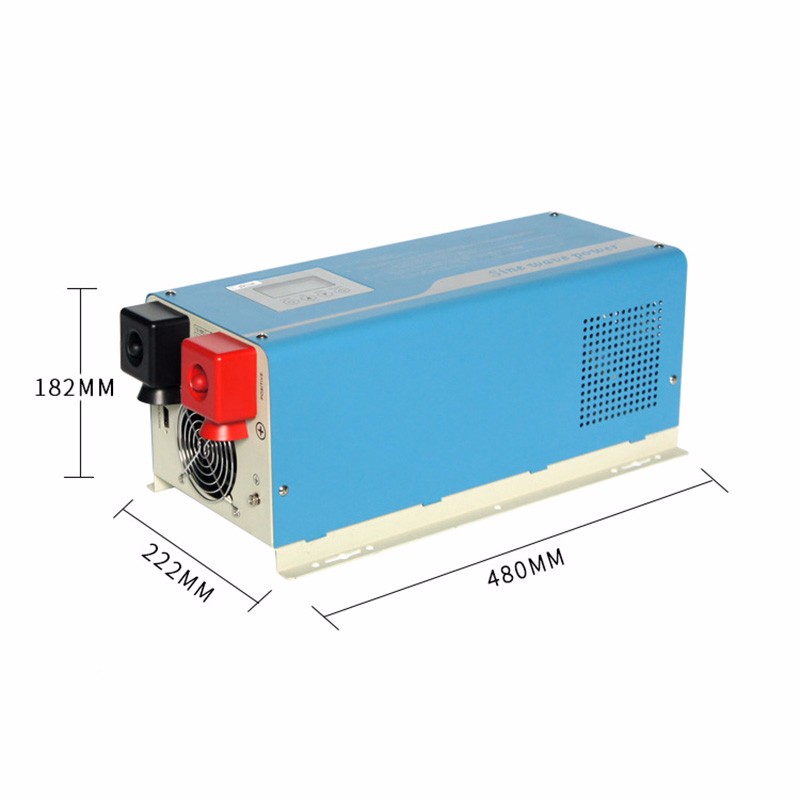

Industrial Pure Sine Wave Power Inverter 1-8KW

With the double MCUs, the product provide different charge voltage and charfe current to realize chargemanagement for batteries of different types. Its mains supply preferred mode, energy-saving mode and battery preferred mode are all settable, thus makeing it easy to meet families. schools, streets, frontier defense, pasturing areas, industrial equipment, satellitecommunication equipment, military vehicle-born equipment, ambulances,police cars, ships, etc.

Basic System Architecture

The following illustration shows the basic application for this in MPPT charger.It also includes the following devices to

have a complete running system:

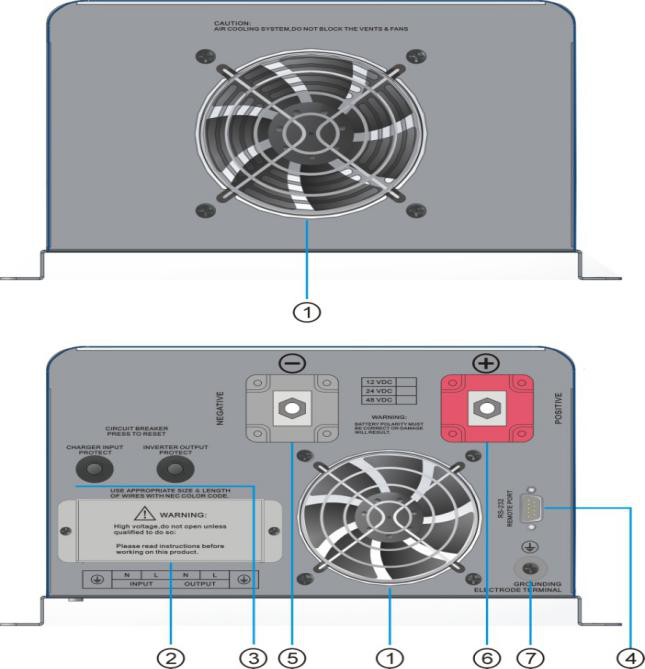

1K/2K/3K view of equipment appearance

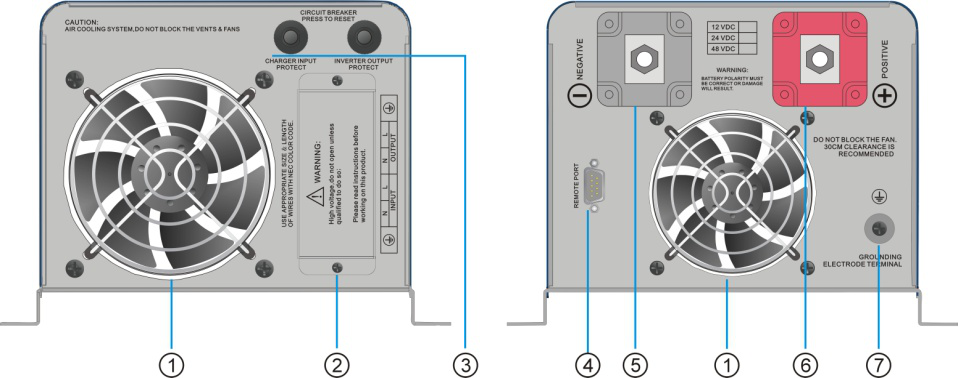

4K/5K/6K veiw of quipment appearance

①-- Fan

②-- AC input/output terminal

③--AC input/output fuse holder

④--RS232 communication interface(optional function)

⑤--Battery terminal negative input terminal

⑥-- Battery terminal positive terminal

√ • Pure sine wave output for compatibility with loads of different types

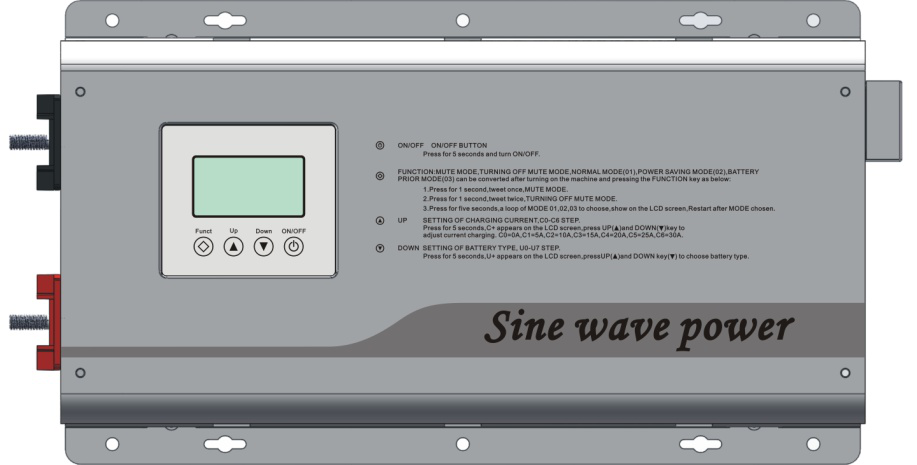

√ • Visualization of operation status of the equipment through a digital LCD

√ • A wide range of input voltage, accurate output and all automatic voltage stabilization

√ • Settable battery type and charge current for the charge management of different batteries

√ •  Settable mains supply [referred mode, energy-saving mode and battery preferred mode for easy meeting of the needs of different user
√ •  Overall protection functions(battery overvoltage protection, battery under voltage protection, overload protection,short circuit protection and over temperature protection)
